17
ART NO. TM-9
22
Rescue lifting and lowering device:
• Automatic brake
• Weight: 13 kg
• Working load: 140 kg
• Breaking force: 1400 kg

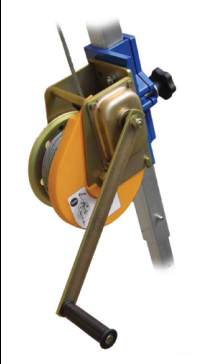

RESCUE LIFTING DEVICE RM RUP-502
• working load limit 500kg
• breaking force: 22kN
• version with chain
• weight: 17,30kg - with chain
SAFETY TRIPOD TM-9
RESCUE AND EVACUATION SYSTEMS
ART NO. RM RUP-502
The specification in the catalog supersedes all previous editions.
steel galvanized cable ø 6,3 mm
Aluminium Holder
We deliver tripod with chain.
Head
• Aluminium alloy
• Four attaching points
23cm
175cm
Shipping dimensions
STANDARD: EN 1496 class B
STANDARD: EN 795
17
ART NO. TM-9
20
• Automatic brake
• Weight: 13 kg
• Working load: 140 kg
• Breaking force: 1400 kg
• working load limit 500kg
• breaking force: 22kN
• cable length: 25 m
• version with chain
• weight: 17,30kg - with chain
SAFETY TRIPOD TM-9
TRIPODS, ANCHOR ND RESCU
ART NO. M RUP-502
The specification in the catalog supersedes all previous editions.
stee galvanized cable ø 6,3 mm
Aluminium Holder
We deliver tripod with chain.
Head
• Aluminium alloy
• Four attaching points
23cm
175cm
Shipping d mensions
STANDARD: EN 1496 class B
STANDARD: EN 795
RESCUE LIFTING AND LOWERING DEVICE RM RUP-502
